AP-AB1208 Anti Static Bar Eliminator Ionizing Air Bar For Printing 24V

Product Categories

Shanghai Anping Static Technology Co.,Ltd

Contact Now

Name: APAB1208 Anti Static Bar Eliminator Ionizing Air Bar For Printing 24V
Brand: AP&T
Price: 100 USD

Brand Name : AP&T

Model Number : AP-AB1208

Certification : Ex-proof , CE ISO9001

Place of Origin : SHANGHAI CHINA

MOQ : 1

Price : USD 100-150pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1500pcs per month

Packaging Details : carton

Model : AP-AB1208

Working voltage : DC±5KV

Working humidity : ＜70%

Ion balance : ≤|±30V|

Discharge speed : ≤2S（Working distance 300mm）

HV cable length : 2.5m（customize available, maximum 5m）

Power : 10W

Fuction : easy cleaning

Contact Now

AP-AB1208 cheap static eliminator anti static bar for printing

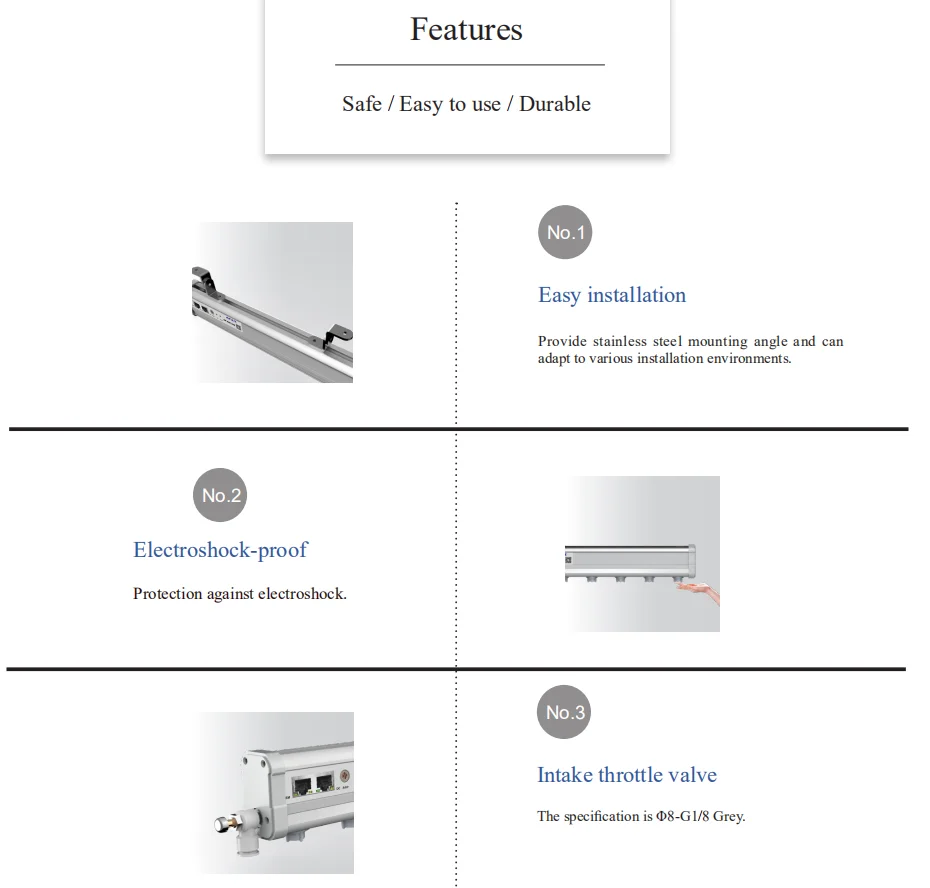

Product Features:

1. Bar shaped and cross over static eliminator

2. Adjustable positive and negative ion output rate
3. Manufactured by using the latest patented technology of static removing

4. Fast speed of static removing, low ion balance and high safety

Model No.	AP-AB1208
Input Voltage	DC 24V
Input current	<600mA
Power	10W
Working Voltage	±5000V
Working method	Pulse AC
Emitter electrode	SUS
Discharge structure	Resistance coupling
Output frequency	1,3,5,10,20,30,50Hz;(Factory setting:30Hz)
Duty Ratio	10%—90%
Working range	LWH:{385-410(Probe distance 25mm);460-2960(Probe distance 50mm)}3001000mm
Working distance	100→1000mm
Ion balance	≤\|±30V\|(AVE)
Discharge speed	≤2S

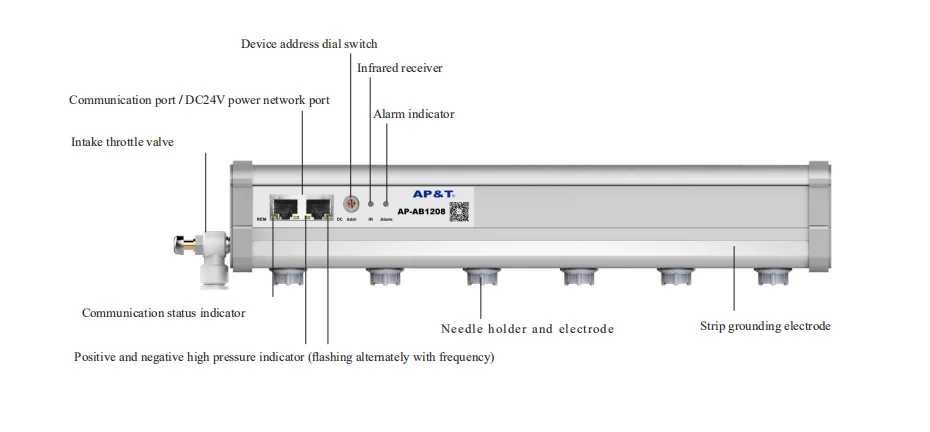

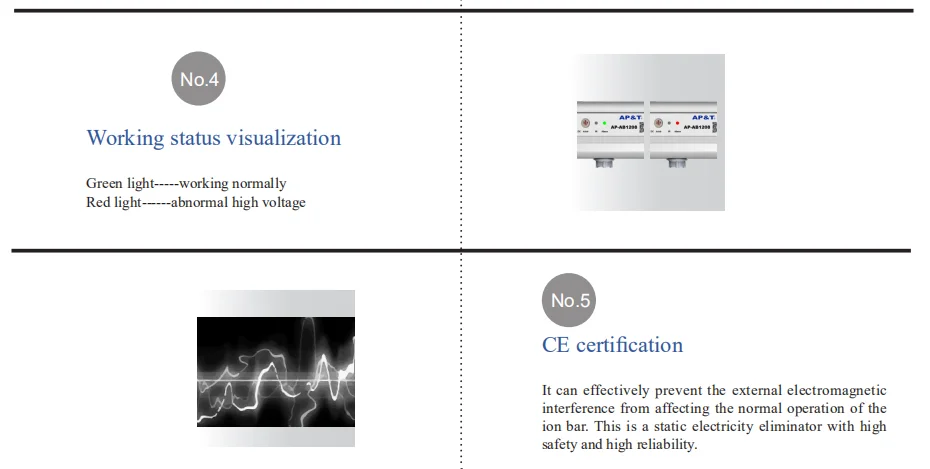

Warning indicate	Power input indicator,High Voltage indicator(Green is normal,Red is abnormal)
Status monitoring	Series network monitoring / wireless monitoring
Airflow pressure	≤0.6MPa
air source connector With throttle valve	Φ8-G1/8 Black
Working temperature	0℃-50℃
Working humidity	<70%
Dimension	LWH:{385-410(Probe distance50mm);460-2960(Probe distance50mm)}3578.4mm
Bar body material	Flame retardant PVC,ABS,AL,SUS
Accessories	Flexible 180° install bracket
Power adapter	GRT-240200: DC24V 2A,Dual network port output,1236140.5mm(LWH)
Power adapter cable length	2.5m
Warranty	1 Year
Certificate	CE

AP-AB1208 Anti Static Bar Eliminator Ionizing Air Bar For Printing 24V

Model No.	AP-AB1208
Input Voltage	DC 24V
Input current	<600mA
Power	10W
Working Voltage	±5000V
Working method	Pulse AC
Emitter electrode	SUS
Discharge structure	Resistance coupling
Output frequency	1,3,5,10,20,30,50Hz;(Factory setting:30Hz)
Duty Ratio	10%—90%
Working range	LWH:{385-410(Probe distance 25mm);460-2960(Probe distance 50mm)}3001000mm
Working distance	100→1000mm
Ion balance	≤\|±30V\|(AVE)
Discharge speed	≤2S
Warning indicate	Power input indicator,High Voltage indicator(Green is normal,Red is abnormal)
Status monitoring	Series network monitoring / wireless monitoring
Airflow pressure	≤0.6MPa
air source connector With throttle valve	Φ8-G1/8 Black
Working temperature	0℃-50℃
Working humidity	<70%
Dimension	LWH:{385-410(Probe distance50mm);460-2960(Probe distance50mm)}3578.4mm
Bar body material	Flame retardant PVC,ABS,AL,SUS
Accessories	Flexible 180° install bracket
Power adapter	GRT-240200: DC24V 2A,Dual network port output,1236140.5mm(LWH)
Power adapter cable length	2.5m
Warranty	1 Year
Certificate	CE
